PARTING
External Tool Holders

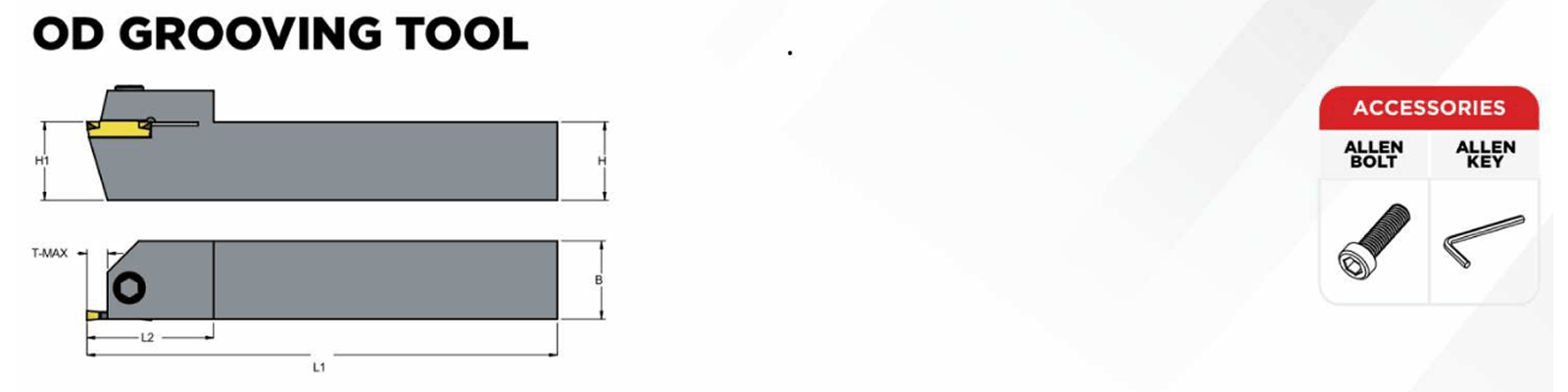

OD GROOVING TOOL

MGEHL/R (KORLOY TIP)

DESIGNATION	H	H1	B	T-MAX(mm)	L1	L2	ALLEN BOLT	ALLEN KEY
MGEHL/R 1212 H2.0	12.0	12.0	12.0	6/10/15/20	100.0	35.0	M4.0	M3.0
MGHEL/R 1616 H2.0	16.0	16.0	16.0	6/10/15/20	100.0	35.0	M5.0	M4.0
MGEHL/R 1212 H3.0	12.0	12.0	12.0	6/10/15/20	100.0	35.0	M4.0	M3.0
MGHEL/R 1616 H3.0	16.0	16.0	16.0	6/10/15/20	100.0	35.0	M5.0	M4.0
MGEHL/R 2020 K2.0	20.0	20.0	20.0	6/10/15/20	125.0	40.0	M6.0	M5.0
MGHEL/R 2525 M2.0	25.0	25.0	25.0	6/10/15/20	150.0	40.0	M6.0	M5.0
MGHEL/R 2020 K3.0	20.0	20.0	20.0	6/10/15/20	125.0	40.0	M6.0	M5.0
MGEHL/R 2525 M3.0	25.0	25.0	25.0	6/10/15/20	150.0	40.0	M6.0	M5.0
MGHEL/R 2020 K4.0	20.0	20.0	20.0	6/10/15/20	125.0	40.0	M6.0	M5.0
MGEHL/R 2525 M4.0	25.0	25.0	25.0	6/10/15/20	150.0	40.0	M6.0	M5.0

KGDL/R (KYOCERA TIP)

DESIGNATION	H	H1	B	T-MAX(mm)	L1	L2	ALLEN BOLT	ALLEN KEY
KGDL/R 1212 H2.0	12.0	12.0	12.0	6/10/15/20	100.0	35.0	M4.0	M3.0
KGDL/R 1616 H2.0	16.0	16.0	16.0	6/10/15/20	100.0	35.0	M5.0	M4.0
KGDL/R 1212 H3.0	12.0	12.0	12.0	6/10/15/20	100.0	35.0	M4.0	M3.0
KGDL/R 1616 H3.0	16.0	16.0	16.0	6/10/15/20	100.0	35.0	M5.0	M4.0
KGDL/R 2020 K2.0	20.0	20.0	20.0	6/10/15/20	125.0	40.0	M6.0	M5.0
KGDL/R 2525 M2.0	25.0	25.0	25.0	6/10/15/20	150.0	40.0	M6.0	M5.0
KGDL/R 2020 K3.0	20.0	20.0	20.0	6/10/15/20	125.0	40.0	M6.0	M5.0
KGDL/R 2525 M3.0	25.0	25.0	25.0	6/10/15/20	150.0	40.0	M6.0	M5.0
KGDL/R 2020 K4.0	20.0	20.0	20.0	6/10/15/20	125.0	40.0	M6.0	M5.0
KGDL/R 2525 M4.0	25.0	25.0	25.0	6/10/15/20	150.0	40.0	M6.0	M5.0

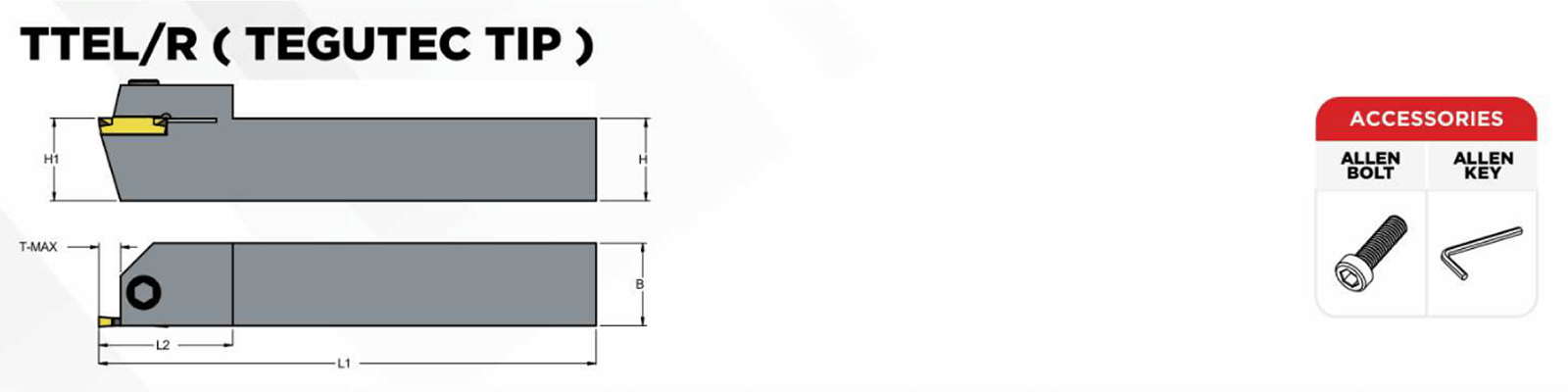

TTEL/R (TEGUTEC TIP)

DESIGNATION	H	H1	B	T-MAX(mm)	L1	L2	ALLEN BOLT	ALLEN KEY
TTEL/R 1212 H2.0	12.0	12.0	12.0	6/10/15/20	100.0	35.0	M4.0	M3.0
TTEL/R 1616 H2.0	16.0	16.0	16.0	6/10/15/20	100.0	35.0	M5.0	M4.0
TTEL/R 1212 H3.0	12.0	12.0	12.0	6/10/15/20	100.0	35.0	M4.0	M3.0
TTEL/R 1616 H3.0	16.0	16.0	16.0	6/10/15/20	100.0	35.0	M5.0	M4.0
TTEL/R 2020 K2.0	20.0	20.0	20.0	6/10/15/20	125.0	40.0	M6.0	M5.0
TTEL/R 2525 M2.0	25.0	25.0	25.0	6/10/15/20	150.0	40.0	M6.0	M5.0
TTEL/R 2020 K3.0	20.0	20.0	20.0	6/10/15/20	125.0	40.0	M6.0	M5.0
TTEL/R 2525 M3.0	25.0	25.0	25.0	6/10/15/20	150.0	40.0	M6.0	M5.0
TTEL/R 2020 K4.0	20.0	20.0	20.0	6/10/15/20	125.0	40.0	M6.0	M5.0
TTEL/R 2525 M4.0	25.0	25.0	25.0	6/10/15/20	150.0	40.0	M6.0	M5.0

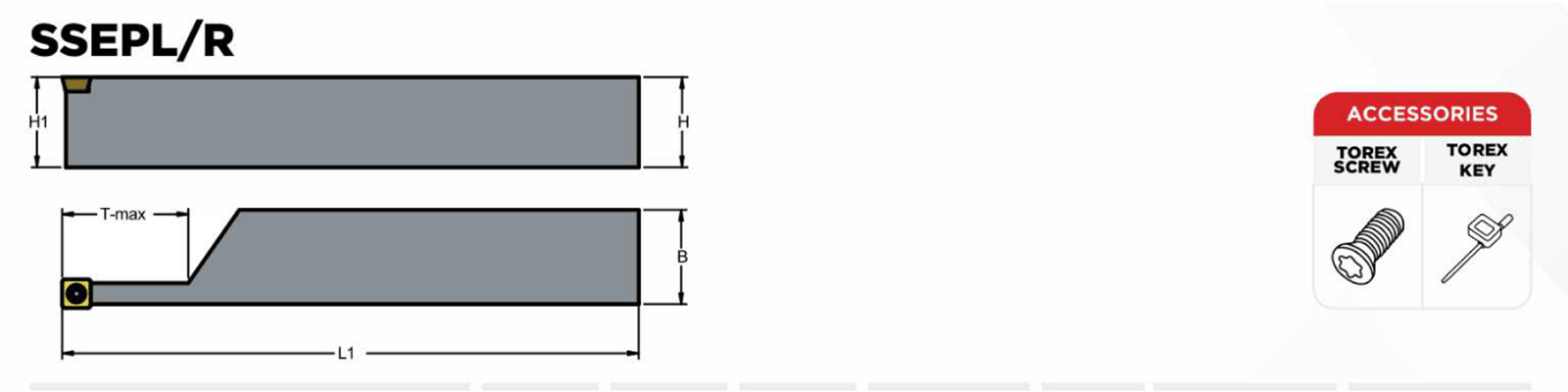

SSEPL/R

DESIGNATION	H	H1	B	T-MAX(mm)	L1	TOREX SCREW	TOREX KEY
SSEPL/R 2020 K05/06/07/09	20.0	20.0	20.0	15/20	125.0	M2.2/2.5/3.0	T-6/T-8/T-10
SSEPL/R 2525 K05/06/07/09	25.0	25.0	25.0	15/20	150.0	M2.2/2.5/3.0	T-6/T-8/T-10
